5 Watt Pushbutton Attenuator | 0-101dB x 1dB steps

December 9, 2024/in Application Notes/by JFW Eng Dept

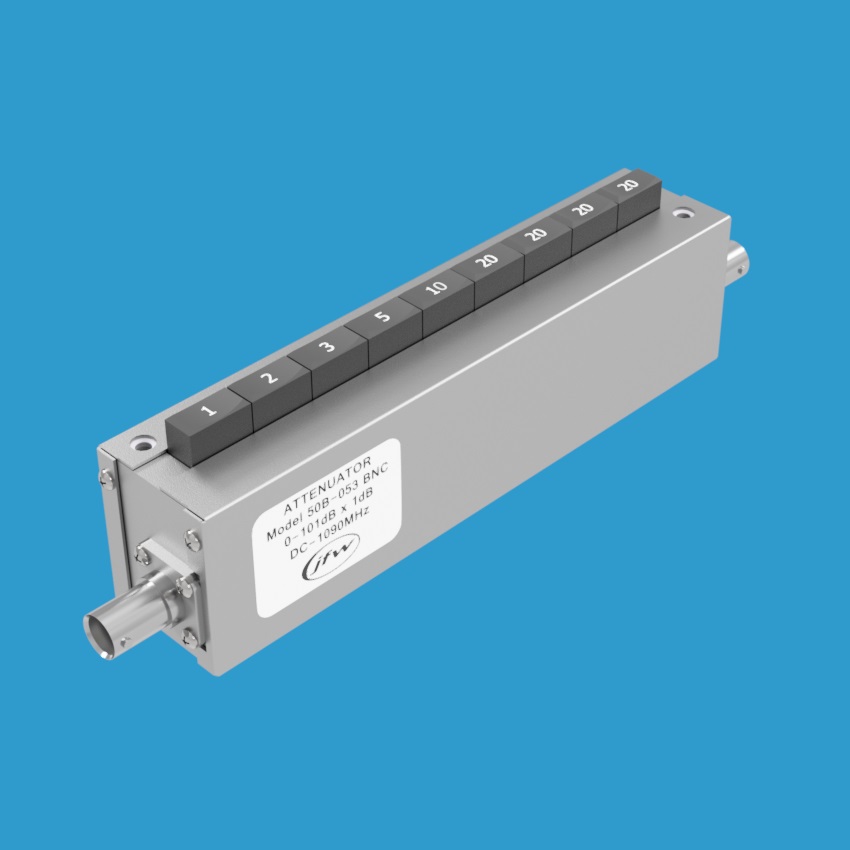

JFW model 50B-053 is a 5 Watt pushbutton attenuator. It has 50 Ohm impedance and operates DC-1090MHz. It has attenuation range 0-101dB x 1dB steps. It is available with BNC, N, SMA or TNC connectors. There are 9 total pushbuttons. Activate multiple pushbuttons to create combinational attenuation settings.

Manual Pushbutton Attenuator

5 Watts average
0-101dB by 1dB steps
50 Ohm impedance
DC-1090MHz
2 mounting holes
Data Sheet
Outline Drawing
