Description

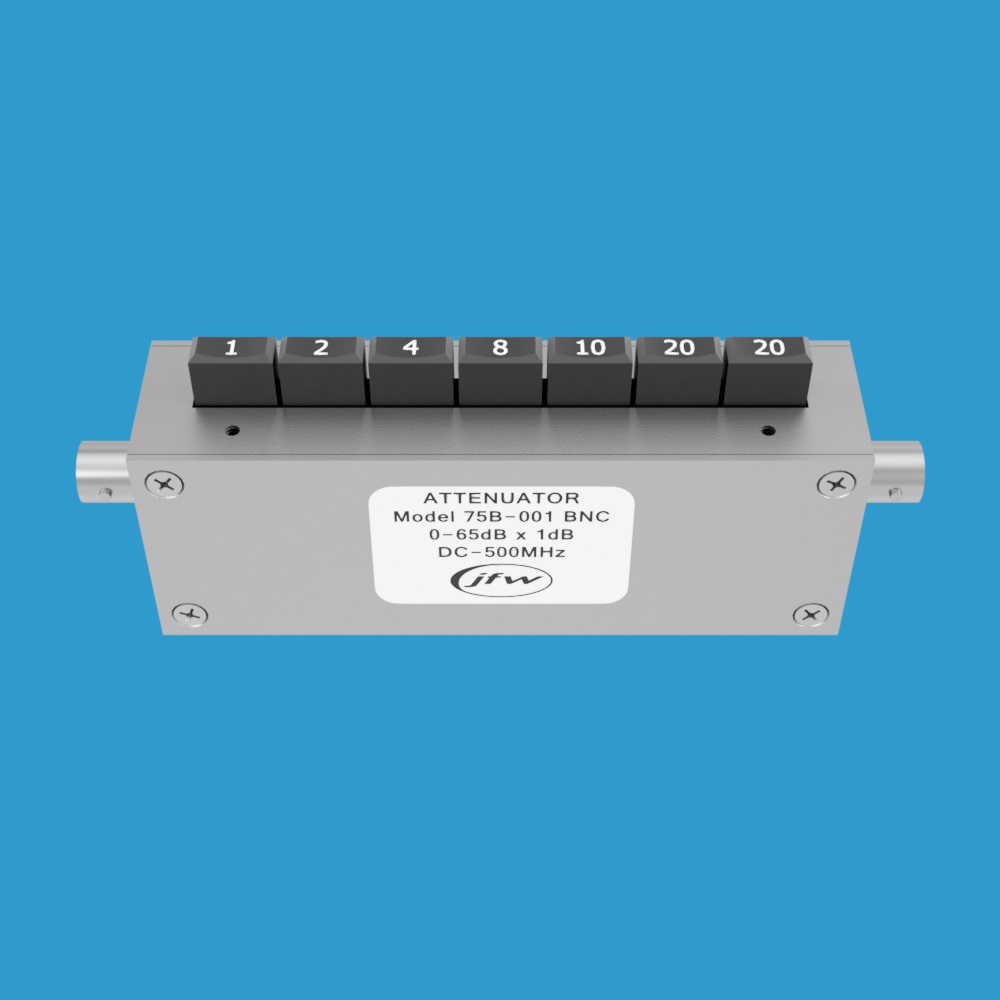

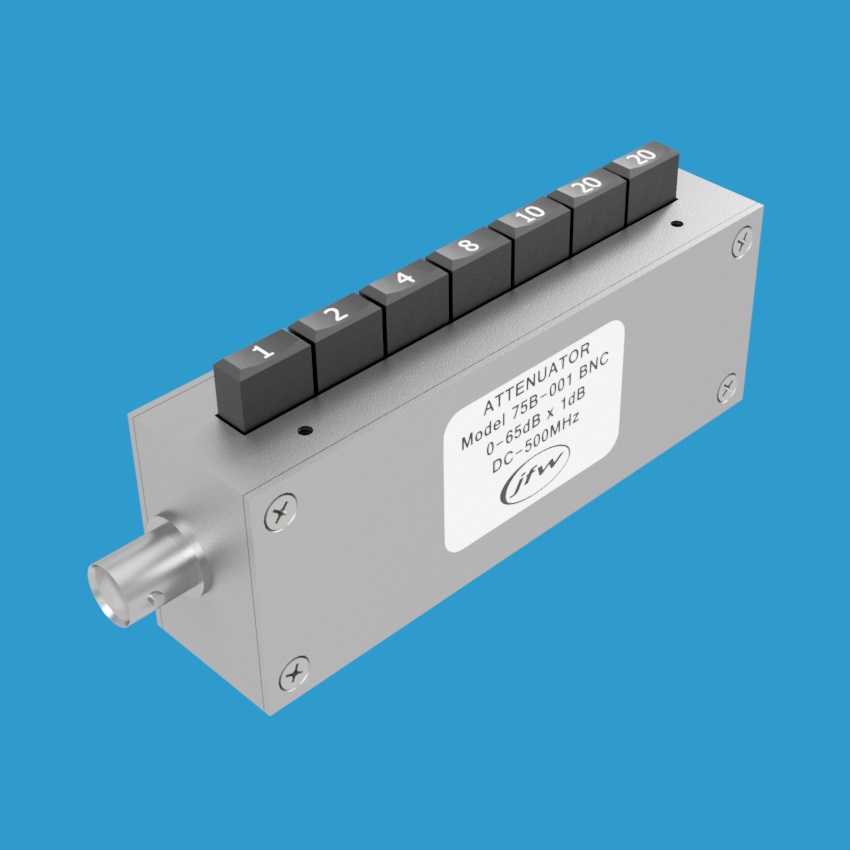

Model 75B-001 is a 75 Ohm pushbutton attenuator with attenuation range 0 to 65dB by 1dB steps. It operates DC-500 MHz and is rated for 1 Watt average of RF input power. Each pushbutton controls an attenuation step. This model has 7 pushbuttons total: 1dB, 2dB, 4dB, 8dB, 10dB, 20dB and 20dB. Engage multiple pushbuttons simultaneously to achieve combinational attenuation values. This manual attenuator is available with 75 Ohm coaxial RF connectors: BNC female or F female. The attenuator has four mounting holes to allow for panel mounting.
