Description

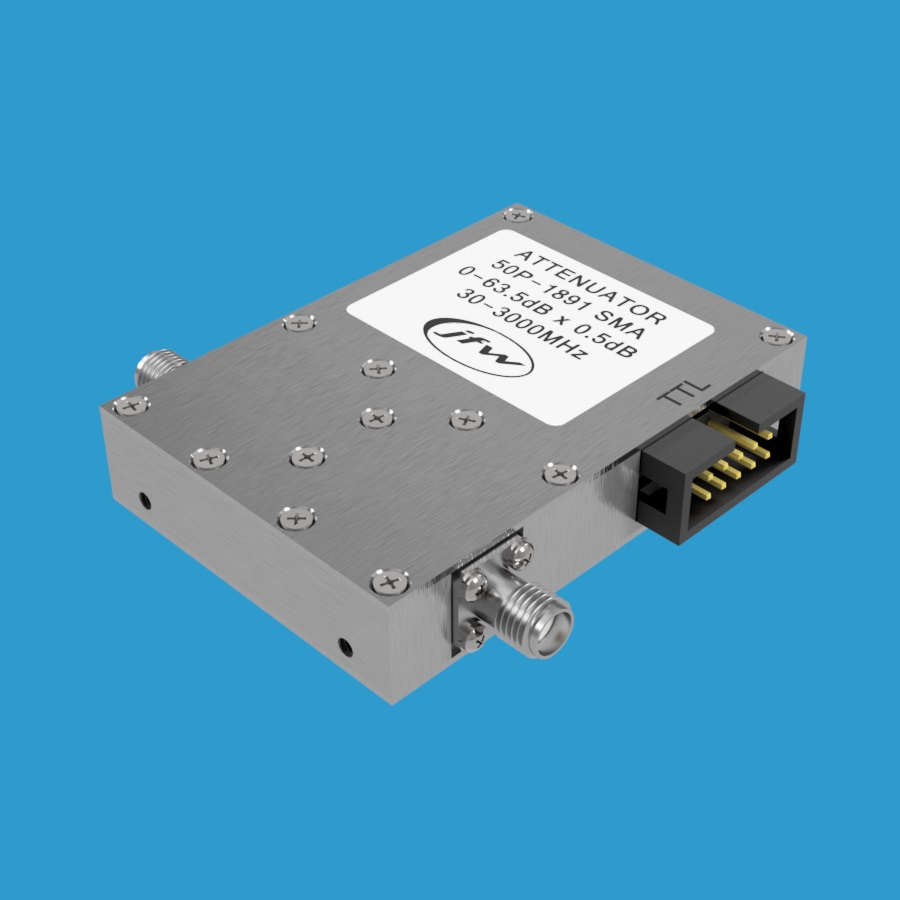

Model 50P-1891 is a 50 Ohm solid-state programmable attenuator with attenuation range 0 to 63.5dB by 0.5dB steps. It operates 30 MHz to 3 GHz and is rated for +27 dBm of RF input power. This step attenuator is available with SMA female coaxial RF connectors. The attenuator has seven individually controlled steps: 0.5dB, 1dB, 2dB, 4dB, 8dB, 16dB and 32dB.
TTL Controlled
Each of the attenuation steps has a corresponding TTL control line. There are seven TTL control lines for this model. See the outline drawing for the control pinout. TTL high will turn on an attenuation step. TTL low will turn off an attenuation step. Use multiple control lines simultaneously to set combinational attenuation values. To activate the 7.5dB setting, the 0.5dB/1dB/2dB/4dB control lines must all be TTL high. To activate the 18dB setting, the 2dB/16dB control lines must be TTL high. To set the attenuator to the insertion loss state (i.e. 0dB setting), all control lines must be set to TTL low.
Recommended Accessories:
016-306-XX (DC cable, 10 pin female to open wires)
016-168-XX (DC cable, 10 pin female to 10 pin female)
